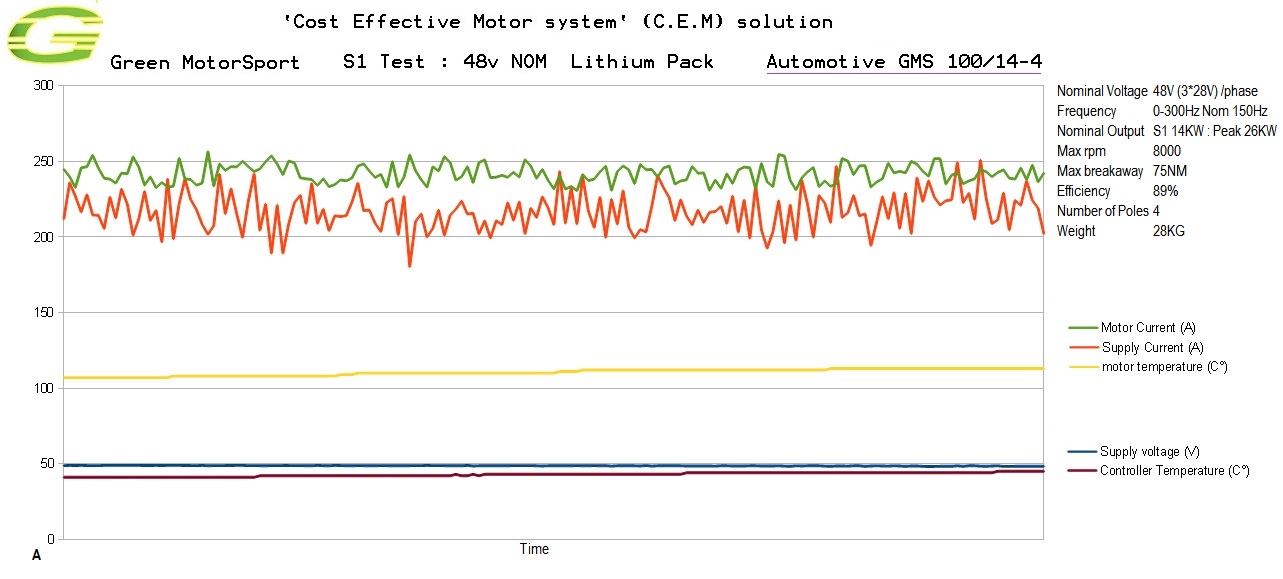

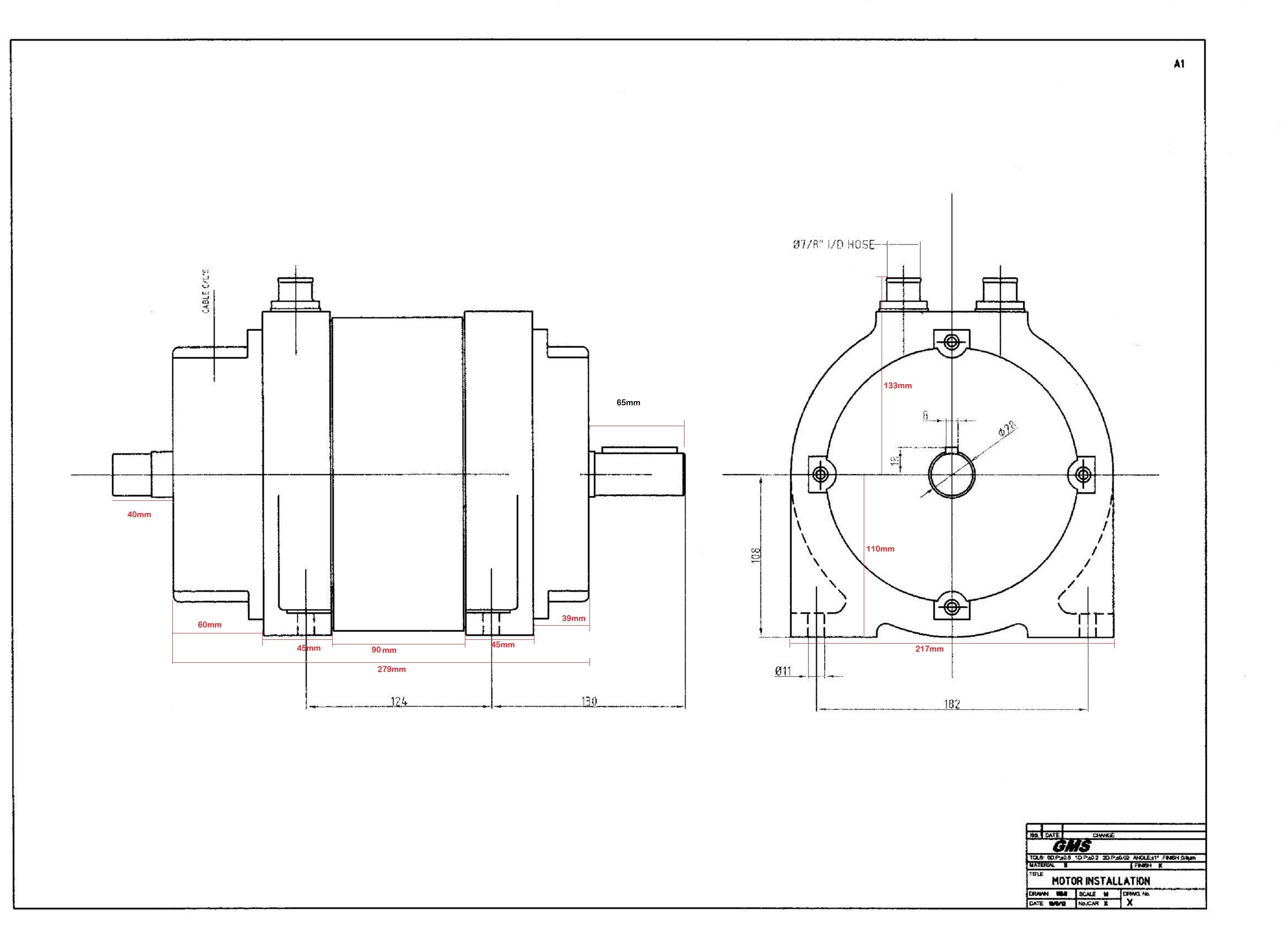

• 2 CEM Liquid cooled Motors : model GMS 100/14-4 (52KW peak)

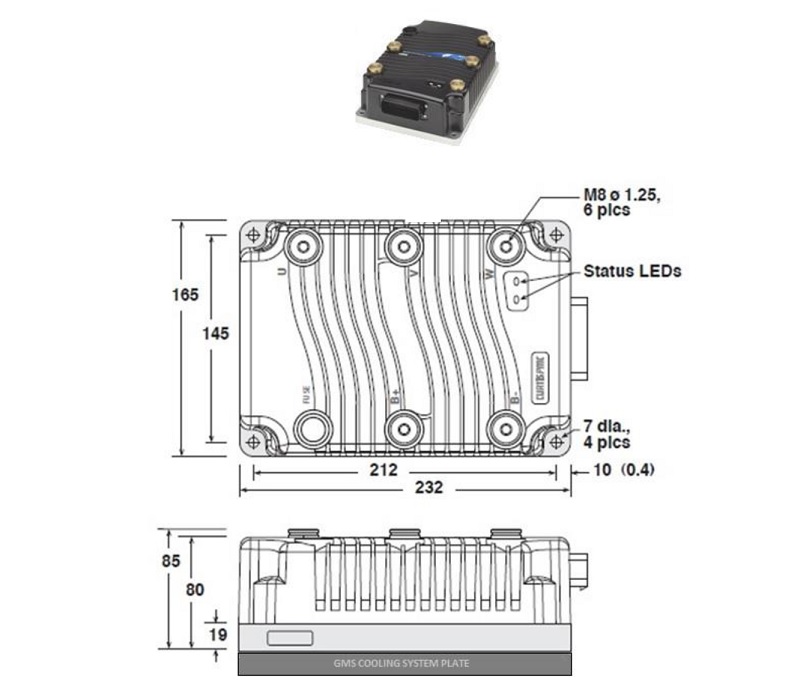

• 2 Liquid cooled Controllers : 550A 48V AC motor controller with cooling plate attached.

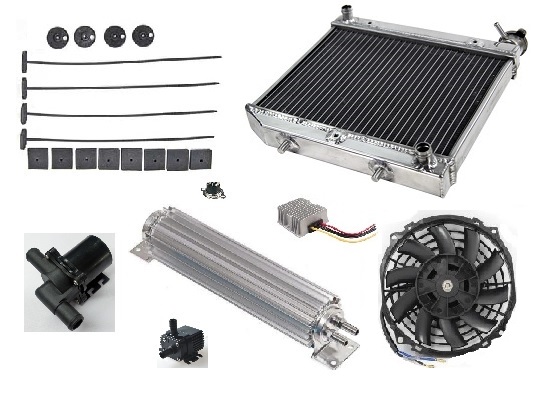

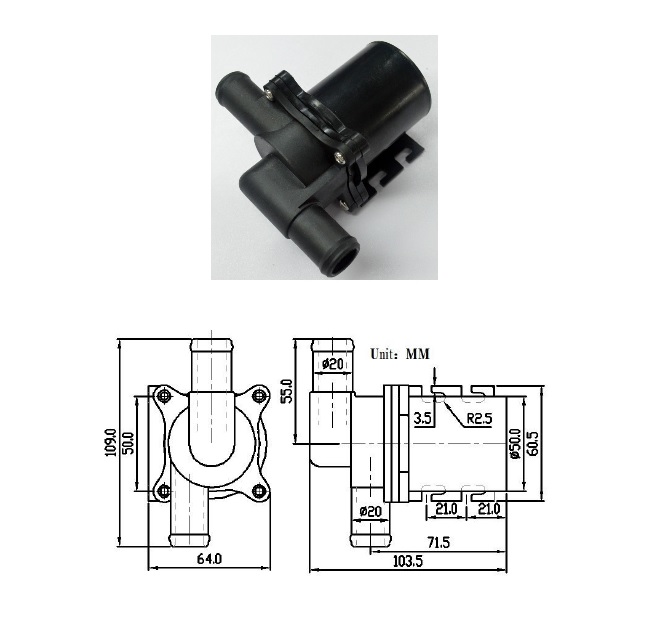

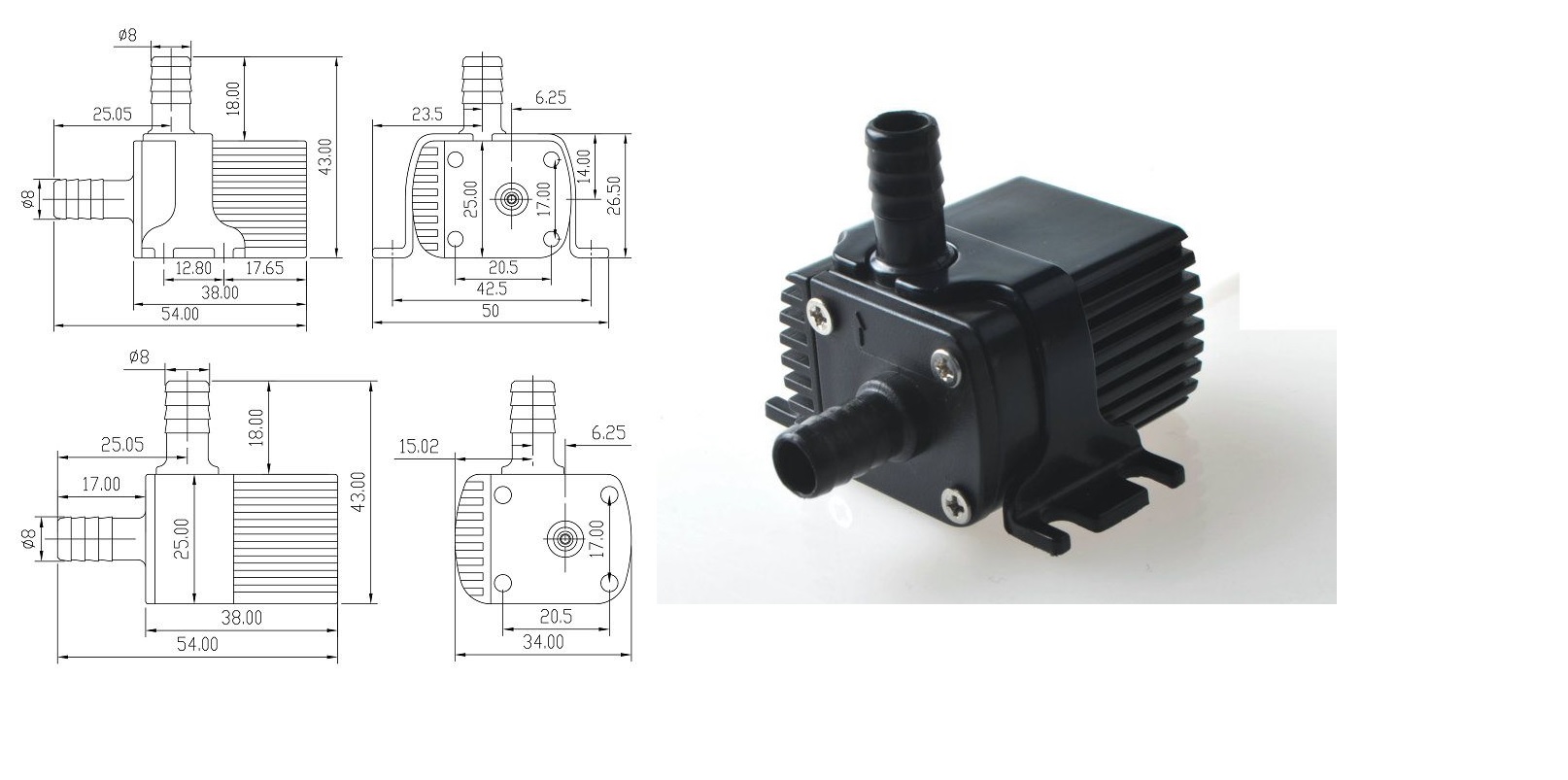

• 1 GMS Cooling system kit : high flow 12V pump for motor cooling. Mini 12V controller cooler pump, radiator, 7 inch fan, 15 inch controller chiller, mini 48V to 12V DC-DC 100watts 10A. (Does not include hoses or clips or header tanks)

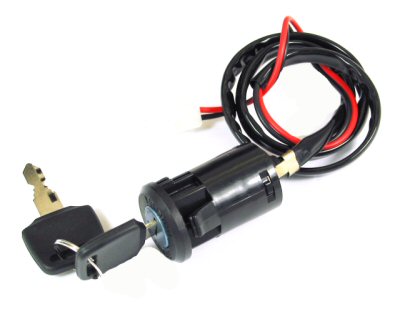

• 2 Communication Wiring Looms Service : loom includes eco and sports speed change switch, hand brake sensor, off on key switch and the forward and reverse switch and 20A inline fuse.

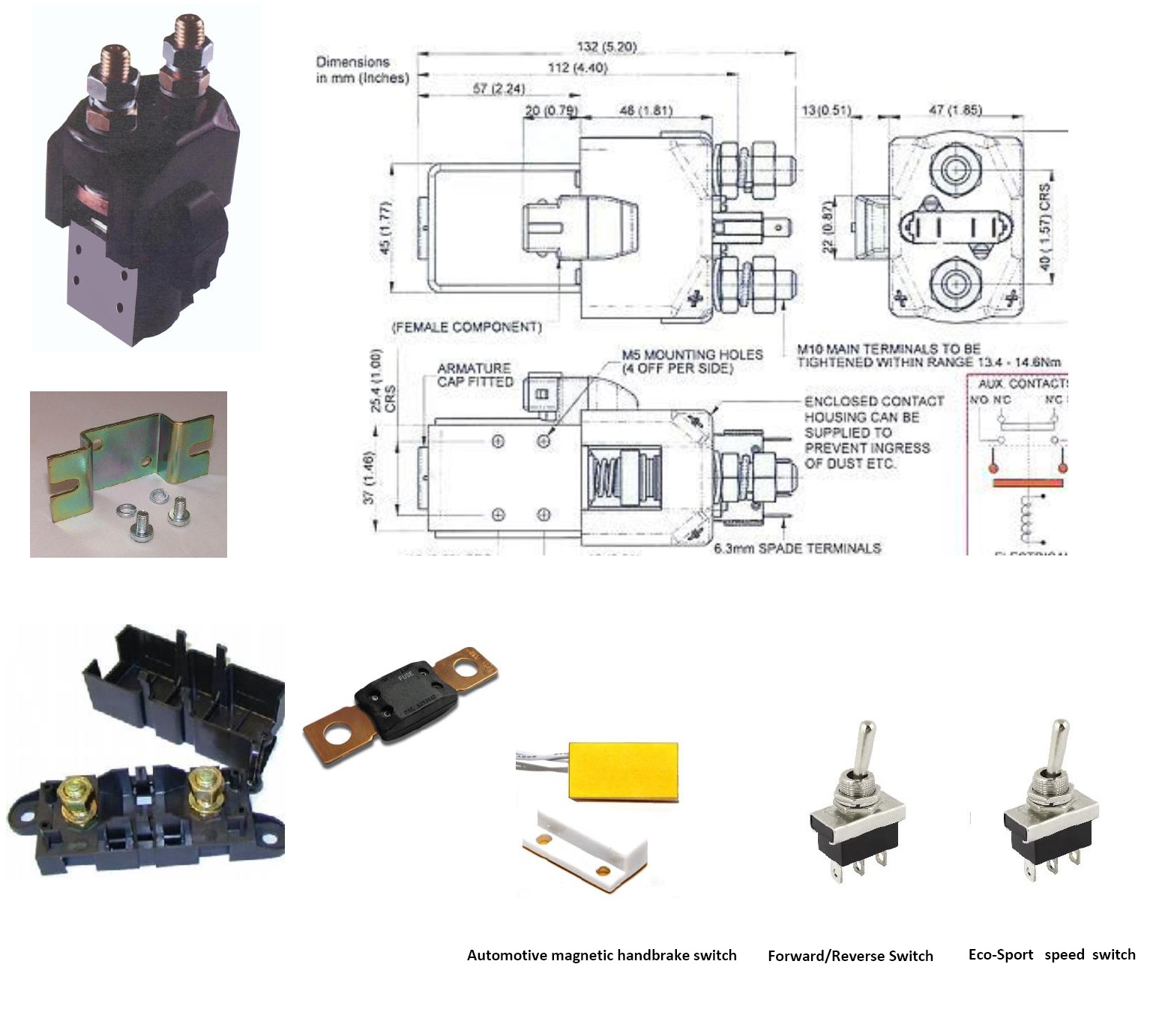

• 2 High Current Fuse and Contactor Kits : Includes main contactor, 500A fuse and a fuse box required by the high current wiring side to the controller.

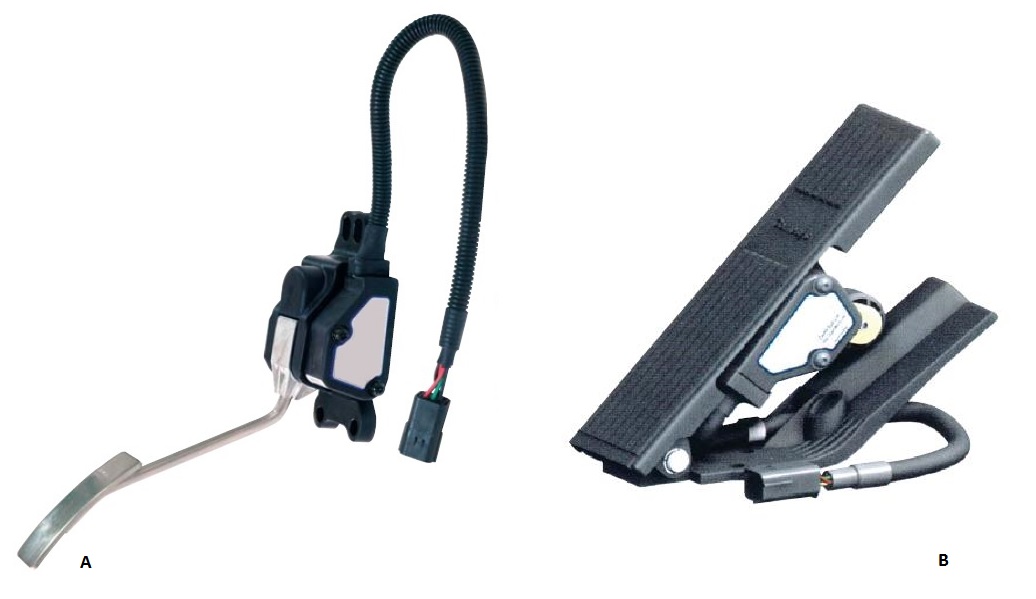

• 1 Throttle Control Pedal

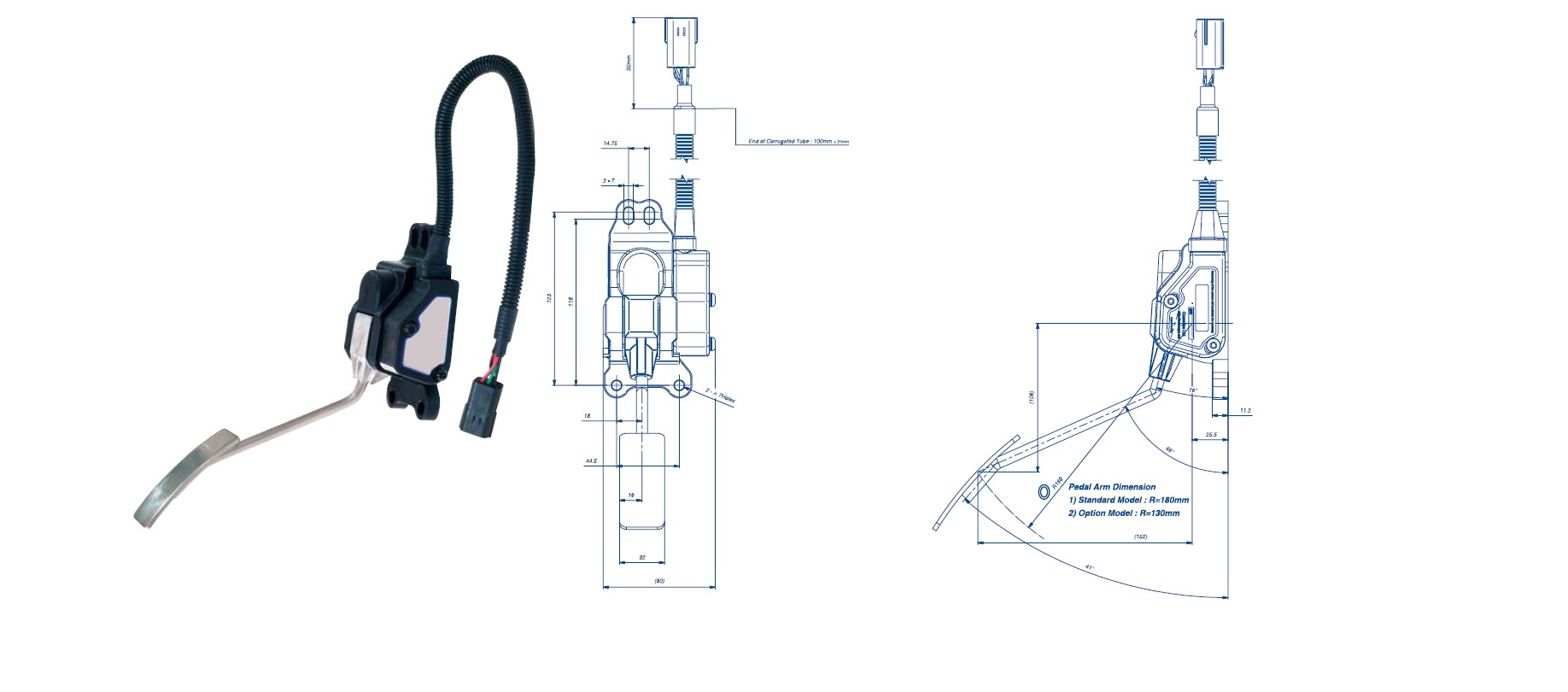

OPTION A GMS f7 foot pedal for light vehicles.

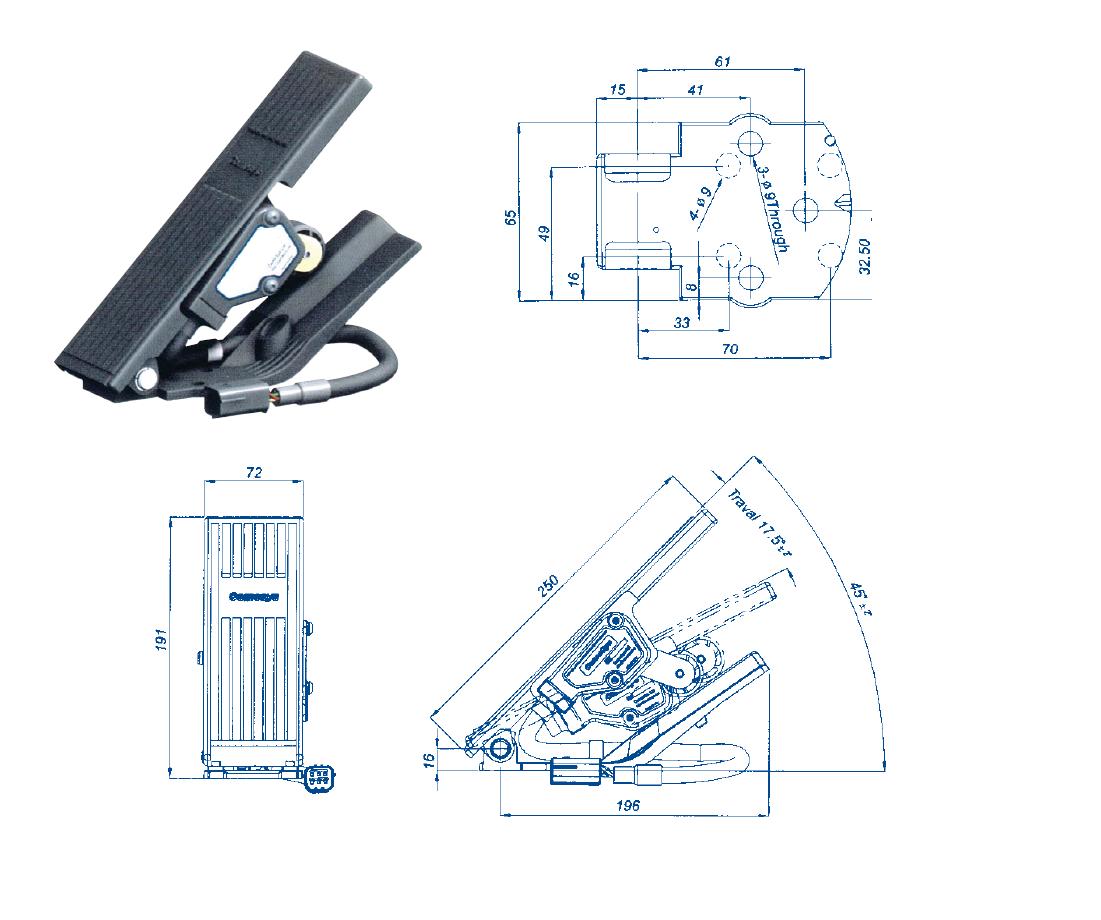

OPTION B ATV type foot pedal for more robust applications.

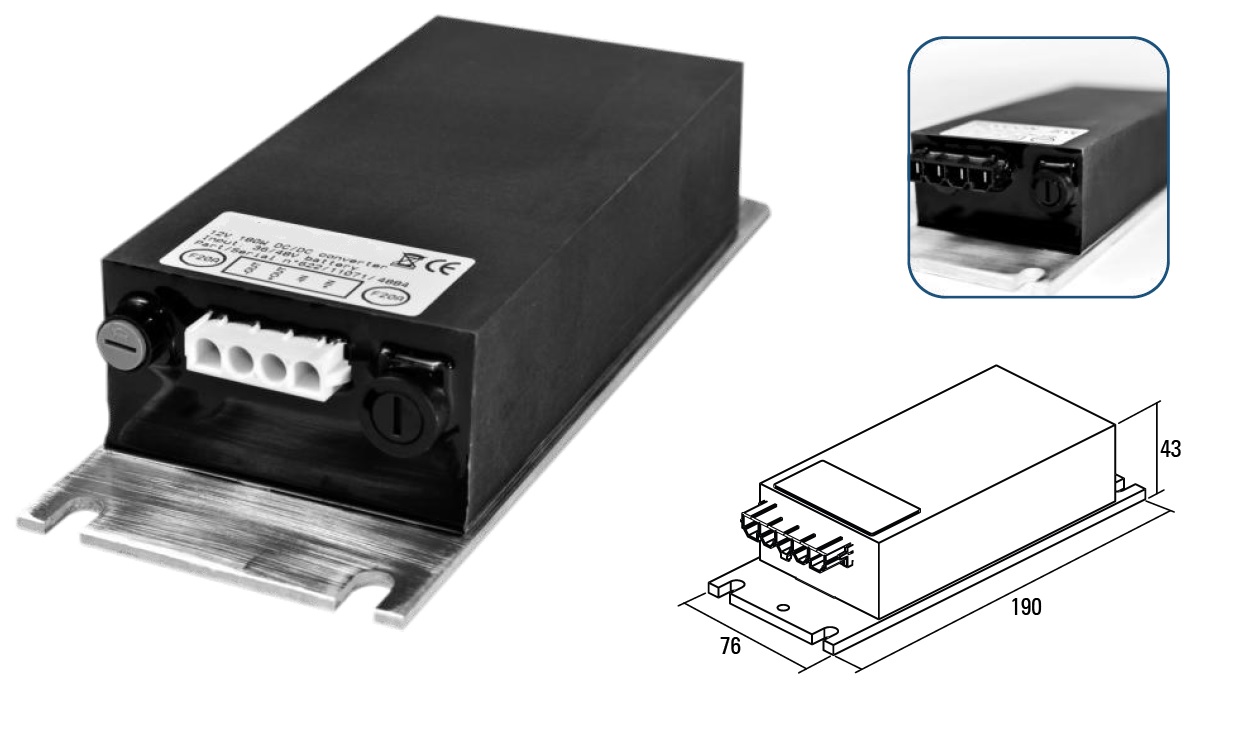

• 1 AUX power DC-DC converters : 48V to 12V 300 watt, DC-DC converter for aux equipment.
• 2 GMS Characterisation & Load Setups : A one off parameter setup optimization.
